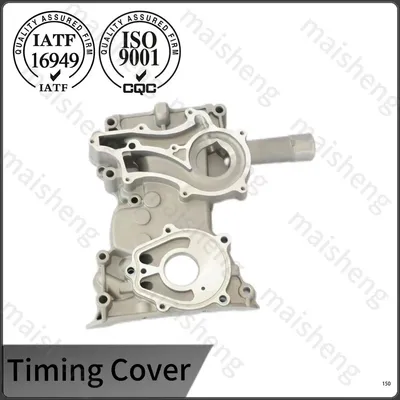

Maisheng supplies the Diesel Engine Timing Case Cover for heavy-duty machinery, generator sets, commercial vehicles, and aftermarket engine repair applications. Designed with precision-machined sealing surfaces, accurate mounting dimensions, and durable aluminum construction, the cover helps protect internal timing components from oil leakage, dust, vibration, and external damage.
A timing case cover is more than a protective shell around an engine's timing mechanism. It forms an important barrier between sensitive timing components and the demanding environment inside and around a diesel engine. A properly engineered cover must maintain dimensional stability, sealing integrity, mounting accuracy, and resistance to heat, vibration, corrosion, and mechanical stress.
For diesel engine manufacturers, machinery operators, distributors, and aftermarket parts buyers, understanding material selection, machining accuracy, sealing design, inspection procedures, and customization capabilities is essential when selecting a replacement or OEM component. Maisheng's timing case cover is manufactured for applications where stable fitment and long-term protection are critical.
Table of Contents
1. What Is the Role of a Diesel Engine Timing Case Cover?
2. What Design Features Matter Most?
3. Why Is Aluminum Used for Timing Case Covers?
4. How Is a Timing Case Cover Manufactured?
5. How Are Sealing and Dimensional Quality Controlled?
6. Where Are Timing Case Covers Commonly Used?
7. What Should Buyers Check Before Ordering?
What Is the Role of a Diesel Engine Timing Case Cover?
The timing system synchronizes critical engine functions. Depending on the engine architecture, it can include timing gears, chains, belts, sprockets, and associated shafts. These components must operate in a controlled environment with appropriate lubrication and protection.
The timing case cover closes the front section of the engine and helps maintain that controlled environment. Its main functions include:
- Protecting timing gears, chains, belts, and related transmission components.
- Helping retain engine oil around the timing system.
- Reducing the risk of dust, water, and contaminants entering the timing area.
- Providing accurate mounting points for secure engine assembly.
- Supporting oil-seal installation around rotating shafts.
- Maintaining structural stability under temperature changes and engine vibration.
A poor-quality cover can create problems beyond simple external damage. A distorted sealing surface, inaccurate bolt pattern, or poorly machined locating hole can affect assembly accuracy and contribute to oil leakage or premature maintenance.
What Design Features Matter Most?
Diesel engines frequently operate under demanding thermal and mechanical conditions. Therefore, the design of a timing case cover needs to balance rigidity, weight, heat management, sealing performance, and manufacturability.
| Design Feature | Primary Function | Importance to Engine Operation |
|---|---|---|
| Precision sealing surface | Supports gasket and seal contact | Helps minimize oil leakage |
| Accurate mounting holes | Ensures correct installation | Improves assembly consistency |
| Locating dowel holes | Controls component positioning | Supports accurate alignment |
| Reinforced/ribbed structure | Improves rigidity | Reduces deformation under vibration |
| Oil-seal installation area | Provides shaft sealing support | Helps prevent lubricant loss |
| Surface protection | Protects the base material | Improves corrosion resistance |
For replacement and OEM applications, dimensional compatibility is particularly important. Even a structurally strong cover may not be suitable if its mounting pattern, sealing geometry, or locating features do not match the target engine.
Why Is Aluminum Used for Timing Case Covers?
Aluminum is a practical material for many engine timing covers because it combines relatively low weight with good thermal conductivity and dimensional stability when properly engineered and processed.
In a diesel engine environment, the cover can experience repeated heating and cooling cycles. Aluminum's ability to transfer heat efficiently can help manage thermal loads while keeping component weight under control.
Maisheng's product information specifies aluminum as the material for this timing case cover. The manufacturing process can include casting, stress relief where required, CNC machining, drilling, tapping, sealing-surface finishing, and protective surface treatment.
Depending on the application and specification, surface protection such as powder coating or electrophoretic coating can provide an additional barrier against moisture, road salt, fuel exposure, and other environmental factors.
How Is a Timing Case Cover Manufactured?
Consistent performance starts with controlled manufacturing. A typical production route for an engine timing cover may include several stages:
- Casting: Aluminum or another specified material is formed into the basic cover geometry.
- Heat treatment: Applied when required by the selected material and engineering specification.
- CNC machining: Critical mounting and sealing features are machined to the required dimensions.
- Drilling and tapping: Bolt holes and threaded features are produced according to the approved drawing.
- Sealing-surface machining: Contact surfaces are finished to support reliable gasket or seal installation.
- Surface treatment: Painting, powder coating, or e-coating may be applied according to the application.
- Oil-seal installation: Where specified, seals are installed using controlled assembly procedures.
- Leak testing: The finished component is tested for sealing integrity.
- Dimensional inspection: Critical dimensions and positioning features are checked before shipment.
- Final assembly and packaging: Approved components are prepared for delivery.
This process approach is especially important for engine components because visual inspection alone cannot confirm critical dimensions, sealing performance, or internal manufacturing consistency.
How Are Sealing and Dimensional Quality Controlled?
Quality control for a timing case cover should focus on the features that directly affect engine assembly and sealing. Maisheng states that its production system includes ISO 9001 and IATF 16949 quality management certifications. The product information also describes pressure-decay leak testing and dimensional audits using coordinate measuring equipment.
During leak testing, the cover's internal cavity can be pressurized with dry air while pressure loss is monitored over a defined test period. This provides a measurable method for identifying leakage that may not be visible during a simple visual inspection.
Dimensional inspection is equally important. Critical areas can include:
- Overall cover dimensions
- Mounting-hole position
- Locating dowel-hole position
- Sealing-surface flatness
- Oil-seal bore dimensions
- Thread dimensions
- Mounting-boss geometry
For fleet operators and aftermarket distributors, consistent dimensions from batch to batch can simplify inventory management and reduce installation-related problems.
Where Are Timing Case Covers Commonly Used?
Diesel engine timing covers are used across multiple engine-powered industries. The appropriate design depends on the engine model, mounting configuration, operating environment, and required service life.
- Heavy-duty machinery: Used in equipment exposed to vibration, dust, and long operating cycles.
- Generator sets: Supports reliable protection of timing components during continuous or standby operation.
- Commercial vehicles: Helps protect engine timing components under frequent road operation.
- Off-highway equipment: Provides a protective barrier in environments with increased exposure to dirt and water spray.
- Aftermarket repair: Provides replacement options when an original timing cover is damaged or worn.
- OEM projects: Can be developed according to approved drawings, samples, mounting requirements, and surface specifications.
For demanding applications, buyers should consider not only the initial component price but also dimensional consistency, sealing reliability, service life, packaging, and supply stability.
What Should Buyers Check Before Ordering?
Selecting the right timing cover requires more than matching the general product name. Buyers should provide sufficient technical information so the manufacturer can verify compatibility before production.
| Buyer Requirement | Information to Confirm |
|---|---|
| Engine compatibility | Engine model, application, and existing part reference |
| Dimensions | Overall dimensions and critical machining tolerances |
| Mounting | Bolt pattern, thread specifications, and locating holes |
| Material | Required aluminum alloy or other approved material |
| Surface finish | Painting, powder coating, e-coating, or other treatment |
| Sealing | Gasket configuration, seal bore, and leak requirements |
| Order quantity | Prototype, aftermarket, wholesale, or production requirements |
| Customization | Drawings, original samples, logo, dimensions, and mounting-hole requirements |
Maisheng supports customization of dimensions, mounting holes, and logos. Buyers can provide engineering drawings or original samples for technical evaluation, specification confirmation, and pre-production approval before mass manufacturing.
For additional engine component options, buyers can also explore related timing chain cover solutions and other automotive components to build a more complete sourcing plan.
FAQ
What is a Diesel Engine Timing Case Cover used for?
A timing case cover protects internal engine timing components such as gears, chains, and belts while helping maintain sealing around the timing system. It also helps prevent oil leakage and the entry of dust or other external contaminants.
What material is commonly used for this type of timing cover?
Aluminum is commonly used because it offers a useful combination of low weight, thermal conductivity, and dimensional stability. The appropriate alloy should be selected according to the engine design and engineering requirements.
What can cause timing case cover leakage?
Common factors include damaged or incorrectly installed seals, distorted sealing surfaces, incorrect bolt tightening, mounting misalignment, excessive vibration, and component wear. Proper machining and inspection help reduce these risks.
Can a timing case cover be customized for different diesel engines?
Yes. Custom dimensions, mounting-hole patterns, surface finishes, and logos can be developed according to technical requirements. Drawings or an original sample can be used as references for engineering evaluation and pre-production approval.
What industries can use this engine component?
Typical applications include heavy-duty machinery, generator sets, commercial vehicles, off-highway equipment, engine assembly projects, and aftermarket replacement programs.
Conclusion: How Can the Right Timing Cover Support Engine Reliability?
A timing case cover plays an important role in protecting the engine's timing system, maintaining sealing integrity, and supporting stable operation in demanding environments. Material selection, accurate machining, reliable mounting geometry, surface protection, leak testing, and dimensional inspection should all be considered when evaluating a supplier.
With aluminum construction, precision machining, customization capability, quality-system control, and a stated production capacity of up to 1,500 pieces per week, Maisheng provides timing case cover solutions for OEM, wholesale, aftermarket, and replacement applications. If you are sourcing a compatible component or developing a customized engine part, contact us with your drawings, samples, engine model, or technical specifications to discuss the right production solution for your project.
