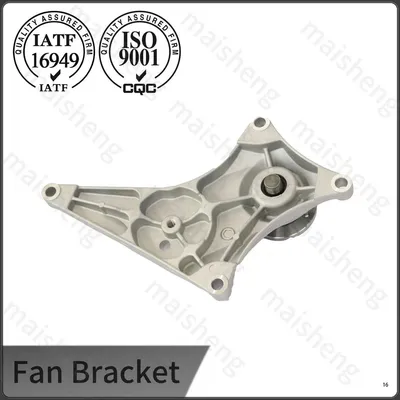

Heavy Duty Truck Fan Bracket

Maisheng heavy duty truck fan bracket is professionally engineered to solve loose and failure issues common to truck cooling systems under extreme working loads. Adopting fatigue-resistant structural optimization, it effectively offsets frequent engine jolts and road impact force during long-haul transportation. The high-strength rigid body avoids micro-deformation and fan offset, keeping the cooling system working accurately under full-load and high-temperature conditions. It improves overall driving safety and reduces frequent maintenance for heavy duty trucks.

Product Specifications

Material Integrity and Structural Endurance

The bracket body is cast from a high grade aluminum alloy selected for its ability to dampen vibration while retaining dimensional stability across a wide thermal range. After casting, each raw part undergoes a T6 solution and artificial aging heat treatment to achieve a uniform hardness profile, which helps the bracket resist micro cracking around mounting bosses and bearing housings. Threaded inserts are stainless steel helicoils or solid bushings pressed into position, creating a durable fastening interface that does not degrade after repeated service cycles. Finite element analysis was used during the development phase to identify stress concentrations, and reinforcement ribs were added at those locations without adding unnecessary mass. This engineering approach ensures the bracket maintains proper pulley alignment and fan clearance under sustained full load, reducing the risk of belt slip or coolant overheating during cross country hauls.

A Heavy Duty Truck Fan Bracket is an essential component of the engine cooling system, providing robust support for the cooling fan while ensuring precise alignment and smooth rotation. Manufactured from high-strength materials with precision machining and durable bearings, it helps improve cooling efficiency, reduce vibration, and enhance the reliability and longevity of commercial vehicle engines.

More Steel Auto Bearing

Inspection Routine and Factory Support

Every bracket is checked on a coordinate measuring machine against the master model, with critical dimensions such as bearing bore diameter, mounting hole positions and flange flatness recorded for each production lot. A dynamic runout test is then performed on a balancing fixture to verify that the assembly rotates within the permitted tolerance, which is essential for reducing fan vibration and bearing wear. Our Ningbo manufacturing site, covering more than 30,000 square meters, has been producing precision automotive components since 1999 under an IATF 16949 and ISO 9001 registered quality system. The combination of in house CNC machining, pressure die casting cells and a dedicated metrology room allows us to keep both standard replacement brackets and custom OEM versions on a single production schedule. For fleets and distributors, we maintain a stock of common reference models and can arrange air or sea shipments with the relevant material certificates and inspection reports included.

FAQ

Q:Is modification needed during installation?

A: A:No modification is required. All dimensions and mounting holes follow original standards for direct and accurate replacement.

Q:What are the consequences of bracket damage?

A: Damaged brackets cause fan shaking and offset, leading to poor heat dissipation, engine overheating and even radiator collision damage.

Q:Can you support bulk and OEM orders?

A: Yes. We provide stable bulk wholesale, sample customization and OEM services for global aftermarket customers.

Q:Why is it suitable for long-haul transportation?

A: It relieves cumulative vibration stress, avoids micro-deformation and keeps stable fan heat dissipation during long-distance continuous operation.
