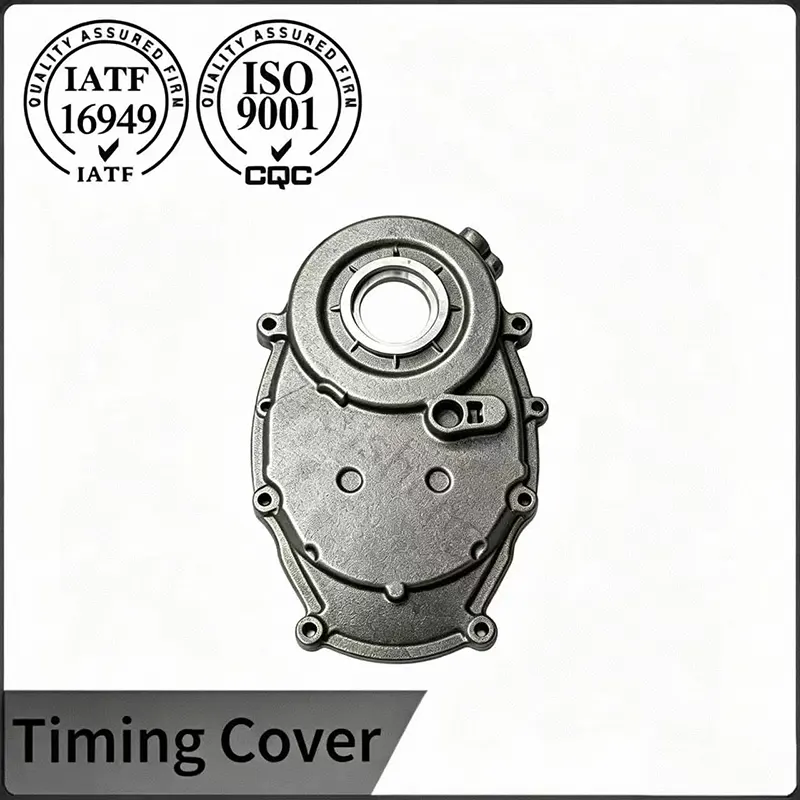

The Timing Chain Cover forms the front boundary of the engine lubrication system, enclosing the timing chain or belt assembly while retaining oil and excluding external contaminants. Maisheng manufactures these components in an integrated facility that combines casting, CNC machining and a dedicated quality laboratory, providing direct control over each production step from raw material receipt to final inspection.
Timing covers are available in two material grades to suit different engine architectures. Gray cast iron covers offer high inherent damping and dimensional stability under heavy load cycles, making them suitable for commercial diesel and high-torque applications. Aluminum alloy covers, cast from a silicon-magnesium formulation, provide weight savings and rapid heat dissipation for passenger car platforms. Both material paths include a thermal aging or stress relief cycle before machining. This step equalizes residual strains from the casting process and helps the finished cover maintain its gasket rail flatness across repeated cold start to operating temperature transitions.
The gasket flange is milled flat and bolt holes are drilled in a single CNC fixturing, referencing the crankshaft seal bore as the primary datum. Bore diameter tolerance is held within H7, while flange flatness is checked with a laser displacement system and maintained under 0.08 millimeter total indicator reading across the full perimeter. An integrated sealing groove is machined around the inner cavity edge to capture the gasket bead and resist oil creep. After machining, every cover is submerged in a water tank and pressurized with air at 0.5 bar, with zero bubble release required for acceptance. These measures are applied uniformly across standard and custom designs to prevent installation-related oil seepage and protect the timing drive from dust ingress.
Orders are processed directly from the factory, allowing adjustment of production schedules to accommodate both urgent replenishment and consolidated full container shipments for regional distribution centers. Raw material batches are verified via optical emission spectrometry, and finished component dimensional reports are archived with batch codes that link back to the corresponding melt and heat treatment records. The same quality system that governs timing cover production also covers complementary engine components such as oil pans and engine cooling fan brackets, enabling coordinated sourcing for aftermarket distributors who wish to consolidate multiple part numbers under a single quality framework.
The product range covers timing covers for a variety of gasoline and diesel engines fitted to sedans, pickups and light duty commercial vehicles. In addition to timing covers, related precision parts including compressor valve plates and exhaust manifolds are supplied to the same repair workshop and vehicle maintenance chain networks, which span the Southeast Asia, Mexico and Middle East aftermarket regions.
1.Which material should I select for a timing cover replacement on a high mileage diesel engine?
A: Gray cast iron is generally recommended for high mileage diesel applications because its vibration damping and thermal expansion characteristics closely match those of the cast iron engine block, reducing the risk of gasket movement over time. Cast aluminum is more common for modern gasoline engines where weight reduction and faster heat transfer are prioritized.
2.Can I order a timing cover that is not in your standard catalog?
A: Yes, custom covers are developed from existing samples or engineering drawings. A dedicated mold and fixturing are prepared after dimensional review, and a prototype set is supplied for trial fitment before full production. The same material certification, aging treatment and immersion testing protocols apply to custom items as to standard catalog products.
