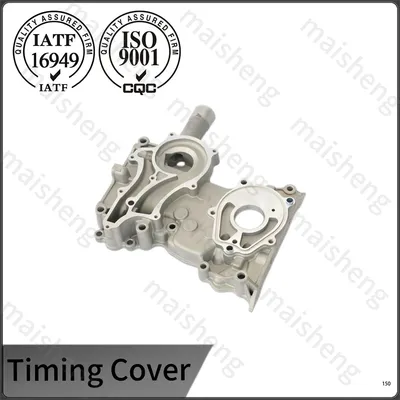

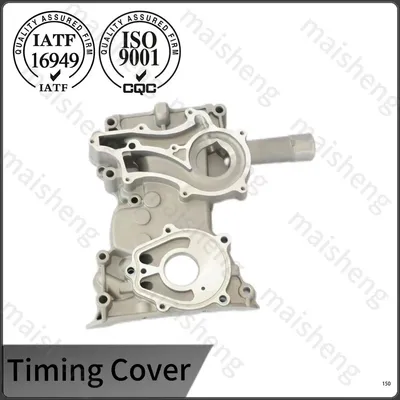

Diesel Engine Timing Case Cover

Maisheng diesel engine timing case cover is engineered for precise engine timing system protection and sealing stability. Optimized structural design strengthens overall rigidity to resist high-temperature vibration and working deformation during long engine operation. With fine machining tolerance and reliable sealing performance, it prevents oil blow-by and dust intrusion, keeping internal timing parts in stable working condition. Strict factory inspection ensures consistent quality and high compatibility with mainstream diesel engines, delivering secure, long-lasting system protection for industrial and commercial engine applications.

Product Specifications

More Steel Auto Bearing

Alloy Characteristics and Surface Protection

The base aluminum is selected for its ability to conduct heat evenly while remaining dimensionally stable under the sustained thermal load typical of turbocharged or heavy duty diesel engines. After casting, the cover undergoes a stress relief cycle to minimise internal tension before machining begins. Sealing faces and locating dowel holes are then milled on multi axis CNC equipment, holding flatness and positional accuracy within a narrow tolerance band. A high adhesion electrophoretic coating or polyester powder coat is applied over the entire outer surface to form a barrier against coolant spray, road salt and fuel exposure. This layer also protects the substrate from galvanic corrosion that can occur at the interface with steel fasteners. Mounting bosses are precisely spot faced to provide a defined clamp load distribution without crushing the gasket, a detail that contributes directly to the long term sealing reliability expected in generator sets, earth moving machinery and long haul trucks.

Manufacturing Process

Typical manufacturing steps include:

Aluminum die casting or iron casting

Heat treatment (if required)

CNC machining

Drilling and tapping

Precision machining of sealing surfaces

Surface treatment (painting, powder coating, or e-coating)

Oil seal installation

Leak testing

Dimensional inspection

Final assembly

Leak Integrity and Inspection Procedures

Every cover passes a pressure decay leak test performed on a dedicated test fixture that simulates the engine mounting condition. The internal cavity is pressurised with dry air while the test software monitors pressure loss over a fixed dwell time. A pass result confirms that both the cast housing and any installed oil seal meet the leakage threshold specified for diesel engine front covers. Dimensional audits are conducted on the first parts from each production shift using a coordinate measuring machine, and critical feature reports are archived with batch identifiers. Material certificates for the aluminum alloy, together with coating thickness and adhesion test records, are assembled into a compliance package that can be supplied to customers alongside each shipment. These procedures are maintained under the site's IATF 16949 and ISO 9001 registered quality system.

Why Choose Maisheng？

1.Professional factory engaged in the production of auto spare parts, equipped with independent production workshops and complete processing facilities.

2.Adopt standardized manufacturing procedures and comprehensive product inspection to maintain stable product quality.

3.Strict control of machining tolerance, ensuring high fitting precision and reliable performance of components.

4.Flexible cooperation modes available, including bulk wholesale, aftermarket supply and OEM customization.

5.Offer adjustable export packaging solutions and stable lead time to serve worldwide buyers.

Operational Environments and Endurance

This timing case cover is validated to perform in continuous duty cycles where engine bay temperatures can fluctuate from cold start conditions below freezing to sustained operating temperatures above 100 degrees Celsius. Its ribbed backside structure adds stiffness without concentrating stress around the bolt holes, a design approach that helps avoid surface cracking after prolonged vibration input. Fleet operators running mixed diesel fleets can therefore expect the same dimensional consistency from part to part, which simplifies stock holding and workshop replacement schedules. For off highway machinery that sees heavy dust and water spray, the sealed gasket groove geometry works in combination with the factory applied coating to prevent dirt ingress and galvanic pitting, extending service intervals and reducing unplanned downtime on job sites.

FAQ

1.Q:What is a diesel engine timing case cover used for?

A:The timing case cover is a key protective auto part for diesel engines. It seals and protects the internal timing gear, chain and belt systems, preventing oil leakage, dust and external impact to ensure stable engine operation.

2.Q：What causes timing case cover failure?

A:Long-term high-temperature vibration, loose installation and deformed sealing surface are the main causes of oil leakage. Our optimized structural design effectively solves common durability problems.

3.Q：How do you handle custom orders for different diesel engine models?

A:Custom dimensions, bolt patterns and surface finishes are supported. Customers may supply drawings or original samples, and the engineering team will develop a specification sheet and a pre production sample for approval before mass production begins. Lead times and minimum order quantities are confirmed during the technical review stage.
