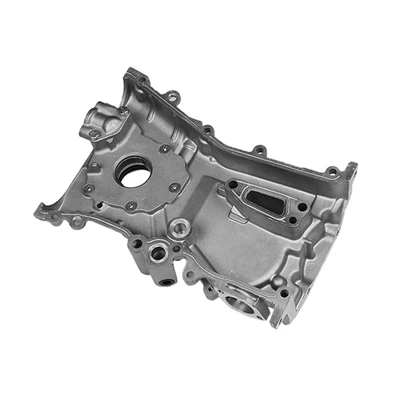

Aluminum Timing Cover

Our Aluminum Timing Cover undergoes multiple professional process treatments to adapt to complex engine operating environments. It boasts excellent shock resistance and compression resistance, which can buffer vibration generated during engine running and protect internal parts effectively. We offer rich specifications covering mainstream vehicle models, and can develop new styles according to customers’ drawings and samples. The finished products fit tightly with mating parts, bringing reliable protection for engine long-term running.

Alloy Selection and Casting Integrity

The timing cover body is gravity cast from a refined AlSi9Cu3 alloy, a formulation that offers a favorable balance between fluidity during mold filling and mechanical properties after heat treatment. Before pouring, the melt is degassed with a rotary impeller system to reduce hydrogen content below 0.15 milliliter per 100 grams, minimizing micro porosity in the finished component. A sample bar from every crucible is tested on an optical emission spectrometer, confirming that copper and silicon levels stay within the narrow bands required for consistent precipitation hardening. Following solidification, the raw casting passes through a T5 aging cycle at 190 degrees Celsius for four hours, relieving residual stress and raising the Brinell hardness to the 90 to 105 HBW range. This procedure stabilizes the part geometry so that the gasket flange and mounting bosses remain dimensionally stable over the full engine temperature spectrum.

Product Specifications

Backed by IATF 16949 certification, our Aluminum Timing Cover ensures consistent quality for both OEM projects and aftermarket applications.It is designed to meet strict industry standards, offering reliable performance for engine systems worldwide.

Machining and Sealing Face Control

The gasket rail is finished on a dedicated CNC pallet that locates the casting using its dowel holes, guaranteeing that the cover aligns with the crankshaft centerline within 0.15 millimeter. Flatness across the entire sealing perimeter is verified with a laser scanning system and held under 0.08 millimeter total indicator reading, a value that ensures even gasket compression and eliminates oil weep paths. Threaded inserts are installed for all accessory mounting points, providing a reusable steel thread that withstands repeated assembly torque without stripping the aluminum parent material. After machining, every timing cover is submerged in a water tank and pressurized with filtered air at 0.5 bar; a continuous monitoring system detects any bubble formation over a 30 second observation window, and the unit is quarantined if a leak is found. This 100 percent immersion test delivers objective assurance of a dry crankcase environment over the service life of the engine.

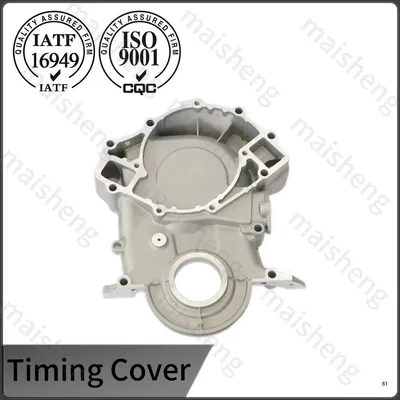

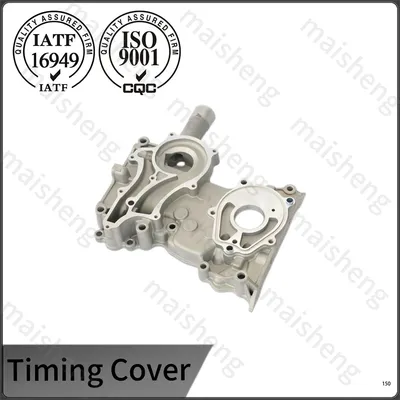

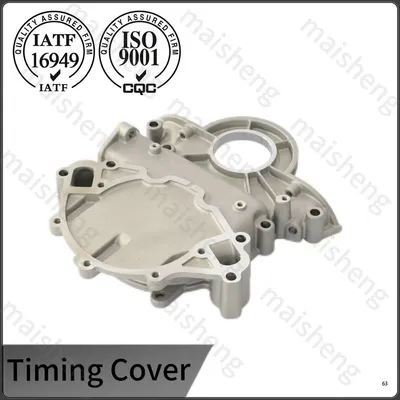

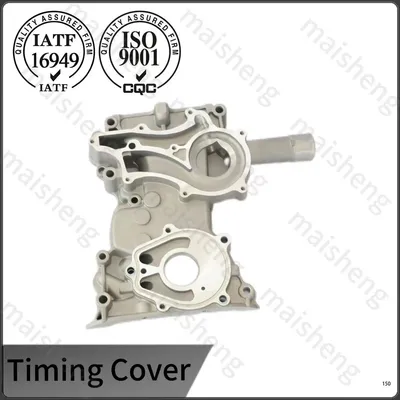

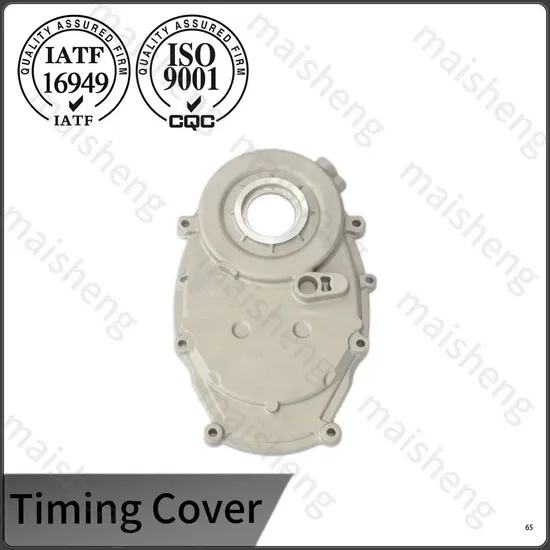

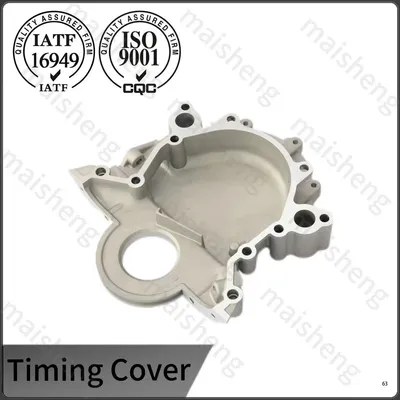

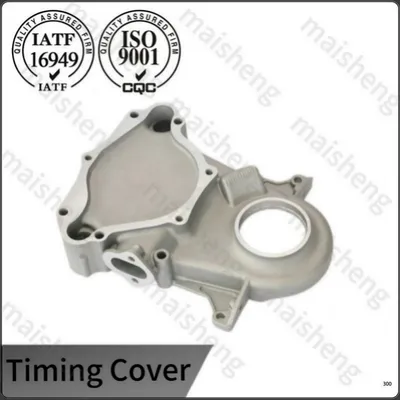

More Aluminum Timing Cover Molds

Our product line covers Aluminum Timing Cover for ordinary cars, trucks and more vehicle types to satisfy your needs.

Manufacturing Heritage and Engineering Support

The production cell for aluminum timing covers is embedded within a facility that has produced precision drivetrain and engine components for global automotive supply chains for more than a quarter century. All manufacturing processes are governed by IATF 16949 management standards, which mandate statistical capability tracking on critical dimensions, documented process failure mode analysis and regular system audits by accredited bodies. A permanent batch code is laser inscribed on each cover, linking it to the raw ingot certificate, the heat treatment log, the machining center program version and the immersion test record. This chain of evidence permits full PPAP level 3 submissions for OEM programs and ensures that any deviation detected during field monitoring can be traced to its source within hours. The engineering group maintains an archive of engine block interface data for numerous passenger car and light truck platforms, enabling a custom cover design to be finalized from a sample or 2D drawing in a short turnaround cycle.

FAQ

1.What is an aluminum timing cover?

A:It is a protective shell installed on the front of the engine, made of cast or billet aluminum. It shields timing chains, gears and guides from dust and debris, meanwhile sealing engine oil inside to prevent leakage.

2.What are the advantages of aluminum timing cover over plastic one?

A: Aluminum features high rigidity, excellent heat dissipation and heat resistance. It will not warp or crack under long-term high temperature, owning longer service life and better sealing stability.

3.What are the common signs of a faulty aluminum timing cover?

A: Visible oil seepage around the cover, burning oil smell, abnormal metal friction noise from the engine front, or engine power drop in severe cases.

4.What maintenance checks prolong the life of an aluminum timing cover?

A: Inspect the cover flange visually during every oil change for traces of oil mist or dirt accumulation that may indicate early seepage. Check the tightness of accessible bolts with a torque wrench, following the engine manufacturer's pattern and specification, as long-term vibration can occasionally relax fastener preload. If the cover is removed for timing chain service, always replace the gasket and carefully clean the sealing surfaces with a non-metallic scraper to avoid scratching the aluminum. Reapply a thin layer of the approved sealant only where specified in the workshop manual, because excessive sealant can squeeze into the oil passages and cause blockages.
