Aluminum Alloy Valve Plate

Crafted to fit varied engine assembly demands, our aluminum alloy valve plate undergoes standardized tempering treatment to upgrade structural rigidity against frequent pressure fluctuations. Smooth surface finishing eliminates burrs that may harm internal components during reciprocating movement. Our factory carries out sample verification before mass production and checks flatness one by one after processing, keeping stable matching accuracy for aftermarket replacement and original equipment assembly.

Alloy Composition and Tempering Process

The plate starts as 6061 aluminum alloy sheet, selected for its balanced silicon and magnesium content that enables a reliable response to precipitation hardening. Blanks are solution treated at 530 degrees Celsius in a controlled air furnace, held for 45 minutes, then quenched in water at ambient temperature. Artificial aging follows at 175 degrees Celsius for eight hours, driving the formation of fine Mg2Si precipitates throughout the grain structure. This T6 temper yields a tensile strength near 310 MPa and a Brinell hardness above 95 HBW, giving the plate the mechanical stiffness to withstand repeated valve opening impacts without plastic deformation. Random samples from each aging batch are subjected to conductivity measurement using eddy current equipment, ensuring the precipitation cycle has fully saturated before the parts move to machining.

Surface Preparation and Burr Control

After heat treatment, the blank surfaces are fly cut on both faces to remove the decarburized layer and achieve a consistent starting thickness. Deburring is performed with a combination of vibratory tumbling and manual brushing under magnification, targeting the port edges and bolt hole rims where residual burrs could detach and contaminate the compressor oil circuit. A profile projector inspection on a 20x magnification scale verifies that all edge radii are within a 0.1 to 0.2 millimeter chamfer, eliminating stress raisers. The final surface roughness, measured with a contact stylus profilometer across the sealing lanes, stays below Ra 0.8 micron. This plateau finish allows the valve reed to seat evenly and reduces leakage paths during the compression stroke.

Product Specifications

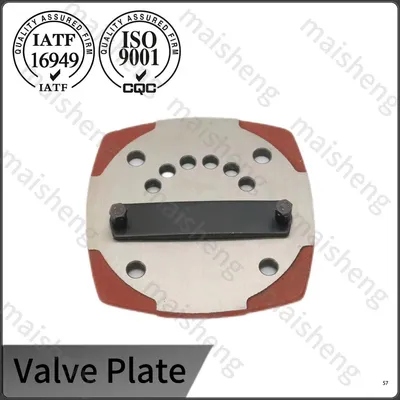

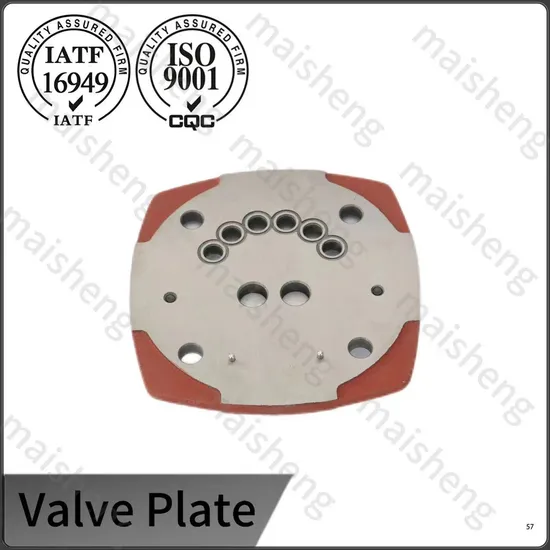

This VP057 series aluminum alloy valve plate, matched with high-quality rubber sealing components, is a precision-engineered core component specially developed for automotive cooling systems, ensuring stable and efficient operation of the whole cooling assembly.

More Aluminum Alloy Valve Plate

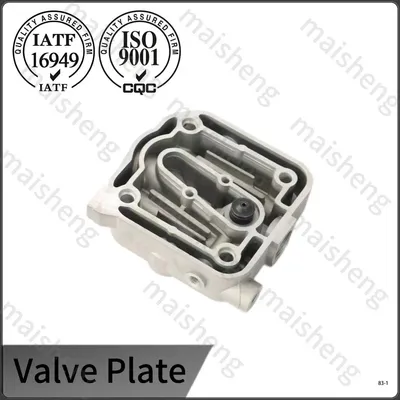

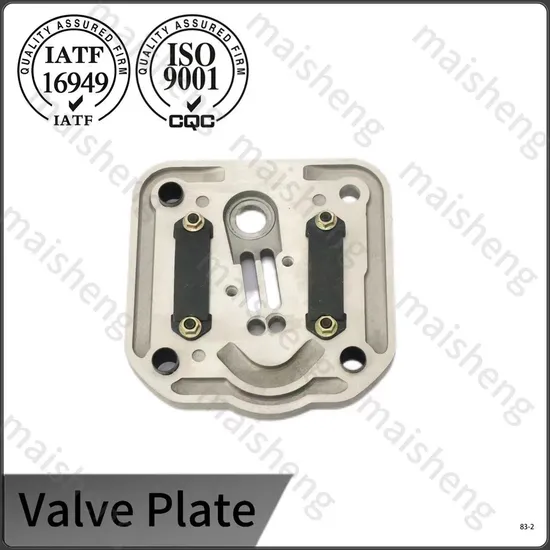

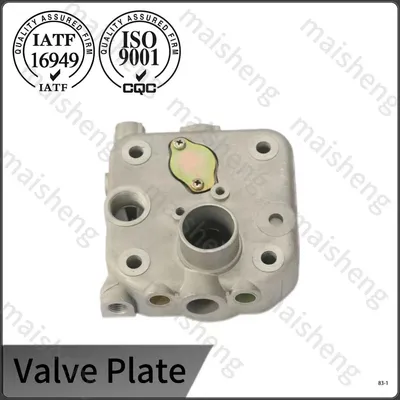

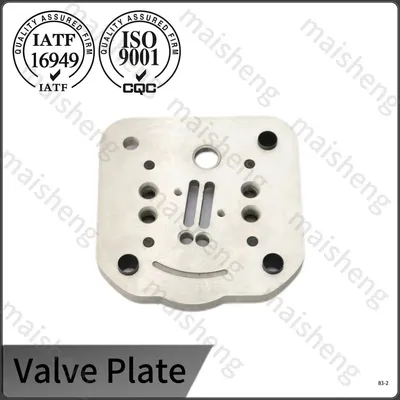

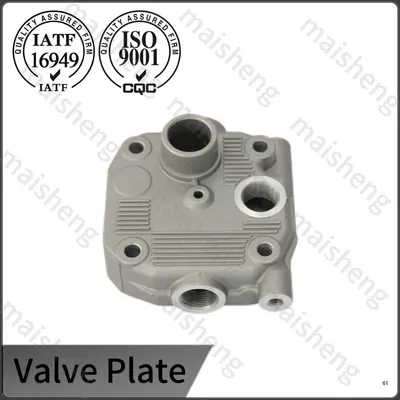

The fine machined aluminum alloy valve plate shows smooth surface and precise dimensional tolerance after rigorous processing.

Dimensional Metrology and Lot Traceability

Flatness is inspected on every single piece using a monochromatic sodium light source and an optical flat of known accuracy. The resulting interference fringe pattern must show straight, parallel bands with no closed loops, indicating a total deviation under 5 microns. Hole center distances are verified on a coordinate measuring machine in a temperature controlled room, referencing the outer profile as the primary datum. Critical dimensions are recorded into a statistical process control database, where control limits are set at plus or minus three standard deviations. Each plate receives a laser etched batch identifier that links to the raw material certificate, the heat treatment log, the machining program version and the optical flatness image. This history trail, managed under our IATF 16949 certified system, remains accessible for the full product life and supports OEM PPAP documentation requests.

Company Experience and Cooling System Expertise

With over 25 years in precision automotive component production, the facility has accumulated extensive application knowledge specific to compressor valve dynamics. Our engineers maintain a reference library of reed valve natural frequencies and seat pressure requirements for common compressor models, allowing rapid dimensioning of a plate that avoids resonant chatter within the engine operating speed range. The same manufacturing cell that produces aluminum oil pans and timing covers under IATF 16949 certification handles valve plate machining, ensuring that process controls such as coolant concentration monitoring, tool life tracking and in-process gauge repeatability studies are consistently applied. When a new plate design is submitted for production, a first article inspection report and a capability study with a minimum sample of 100 pieces are compiled and reviewed before series release.

FAQ

1. What standardized operating steps are required to install an aluminum alloy valve plate?

A: Thoroughly clean the fitting surfaces of cylinder and cylinder head to remove carbon deposits, metal debris and residual dirt; install intake and exhaust reeds according to the air flow direction, then place the valve plate in the correct front-back orientation; fasten fixing bolts crosswise in multiple stages following the torque specified by the equipment manual; complete pump head assembly and conduct idle air tightness test before formal operation.

2. What abnormal operating signals indicate that the aluminum alloy valve plate is damaged?

A: The air compressor cannot reach rated working pressure and runs non-stop for a long time; obvious continuous hissing air leakage sound at the pump head joint; sharp metal impact abnormal noise during compression; pump head temperature rises rapidly after startup with burnt odor; air outlet air volume drops sharply and pneumatic tools lack power.

3. What is the recommended interval for replacing the valve plate in a regularly serviced compressor?

A: For passenger car air conditioning compressors, the valve plate is typically inspected at 60,000 kilometers or 36 months, whichever comes first. Fleet vehicles operating in high dust or coastal salt environments may require inspection at 40,000 kilometers. Measurement of plate flatness and reed lift gap during service determines whether replacement is needed; a plate with more than 0.01 millimeter of dish or with visible impact marks on the sealing band should be renewed to restore full pumping performance.

4. How does the factory handle custom plate designs for obsolete compressor models?

A: Customers can supply an original sample or a detailed dimensional drawing. Our reverse engineering process includes 3D scanning of the sample plate, creation of a CAD model and verification of critical functional dimensions against the compressor cylinder layout. A prototype batch of five to ten plates is then machined, tested for fitment and flatness, and sent to the customer for trial assembly. Once the prototype is approved, the final dimensions and surface finish specifications are locked in a production control plan, and the dedicated fixture and tool set are archived for repeat orders.
