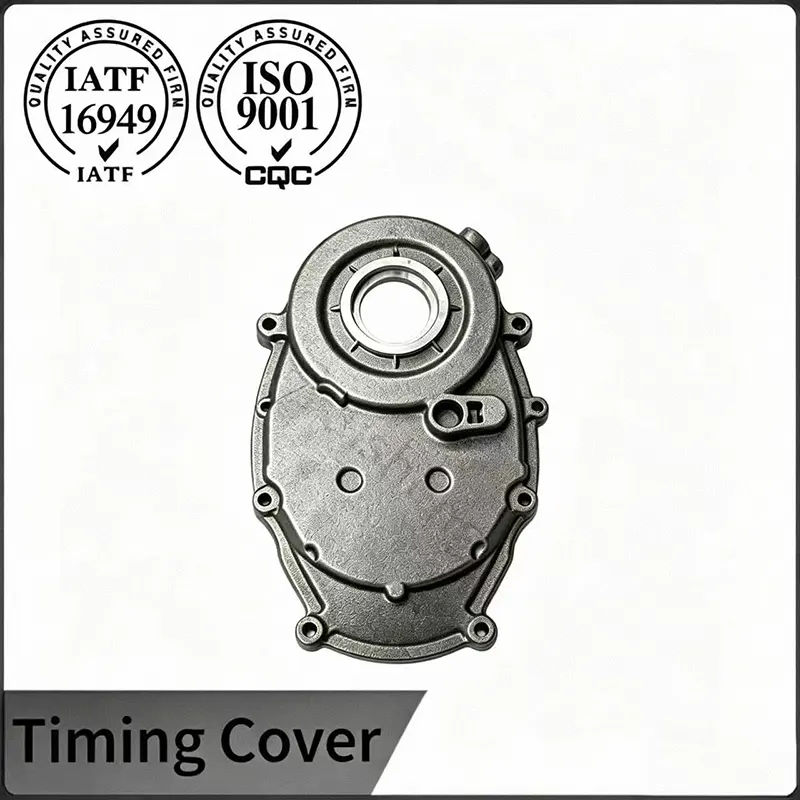

Cast Iron Timing Cover

Our cast iron timing covers are purpose-built for heavy-duty and high-torque applications, including motorcycles, trucks, and construction equipment. Manufactured from high-grade cast iron under IATF 16949 standards, each unit undergoes precision machining and pressure testing to ensure rigidity, oil-tight sealing, and long-term reliability under extreme vibration and thermal cycling. We offer both standard-fit and fully customizable designs.

Product Specifications

Foundry Practice and Material Conditioning

The covers are cast from a gray iron conforming to HT250, chosen for its combination of compressive strength and vibration damping capacity. Melting takes place in an electric induction furnace where carbon equivalent and silicon content are held within tight bands, promoting a fully pearlitic matrix with type A flake graphite. Test bars poured from each heat undergo tensile evaluation and hardness measurement, confirming values above 250 MPa and 190 HBW respectively. After shakeout, the raw castings are loaded into a continuous annealing furnace for a subcritical stress relief cycle at 520 degrees Celsius. The slow ramp and controlled soak relax residual strains from solidification, ensuring that critical flange surfaces remain flat during subsequent machining and throughout the engine thermal cycles.

Machining Strategy and Dimensional Assurance

Once the castings have cooled, the gasket rail, dowel bores and bolt hole pattern are finished in a single clamping on a horizontal machining center. This approach eliminates stack-up errors between operations and guarantees that the cover aligns concentrically with the crankshaft seal axis. A coordinate measuring machine audits the first piece from every setup, checking that flatness across the entire sealing perimeter does not exceed 0.08 millimeter and that bolt hole positions deviate by less than 0.12 millimeter from nominal. Routine in-process checks with a go/no go gauge on the seal bore diameter ensure a consistent press fit for the front crankshaft oil seal. After machining, every cover undergoes a pneumatic leak test under 0.4 bar air pressure while submerged in water, with zero bubble release required for acceptance.

Manufacturing History and Documentation

The production cell operates within an IATF 16949 certified facility that has been dedicated to precision cast and machined automotive parts for over 25 years. Raw material heats are verified via optical emission spectroscopy, and the resulting chemistry report is kept on file together with the furnace chart and the stress relief log. Each timing cover carries a permanent batch code that allows retrieval of the complete manufacturing record, from the foundry pour date to the final inspection data. This traceability framework supports full PPAP level 3 submission for original equipment programs, giving engineering groups access to process flow diagrams, PFMEA documents and statistical capability studies.

Why Choose Maisheng?

1.Professional automotive engineering team with rich experience in developing Cast iron Timing Cover

2.Customized technical solutions to match diverse production and application demands

3.Independent new product development capability to launch new styles efficiently

4.Full-range 100% quality inspection to maintain stable product performance

5.Formal product warranty to protect the legitimate interests of buyers

6.Mature logistics system to support stable and timely order delivery

FAQ

1.What are the core characteristics of cast iron timing covers?

A: Cast iron timing covers feature ultra-high structural strength, strong impact resistance, excellent stability under extreme high temperature and high pressure, and extremely low deformation rate. They have good vibration damping performance, are not easy to age or damage, and can adapt to long-term harsh working conditions.

2.Why do heavy-duty engines prefer cast iron timing covers?

A: Heavy-duty engines such as trucks, engineering machinery and agricultural machinery will generate huge torque, strong vibration and high heat during long-term operation. Cast iron material can resist structural fatigue caused by long-term vibration, avoid shell cracking and oil leakage, and maintain stable sealing and protection performance in harsh working conditions.

3.What is the service life of a cast iron timing cover?

A: Under standard installation and normal maintenance, the service life of a cast iron timing cover is basically the same as that of the engine. It is the most durable type among all timing covers, and damage is almost caused by external impact, improper installation or long-term severe corrosion.

4.What installation steps prevent gasket failure and oil seepage?

A: Begin by cleaning the engine block face and the cover flange with a plastic scraper to remove all traces of old gasket material. Apply a continuous bead of the specified anaerobic sealant to the flange if the design requires it, then position a fresh gasket. Hand thread all bolts before tightening them in three even stages with a calibrated torque wrench, following a cross pattern starting from the center and working outward. After the first full heat cycle, recheck the bolt torque at ambient temperature to compensate for gasket compression. Avoid using impact tools, which can crack the cast iron at the bolt bosses.
