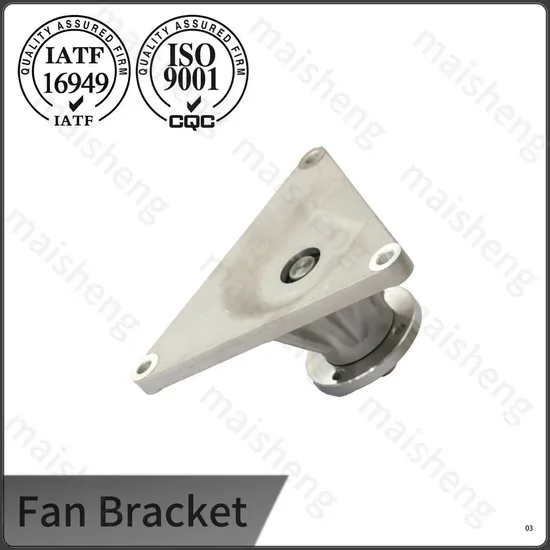

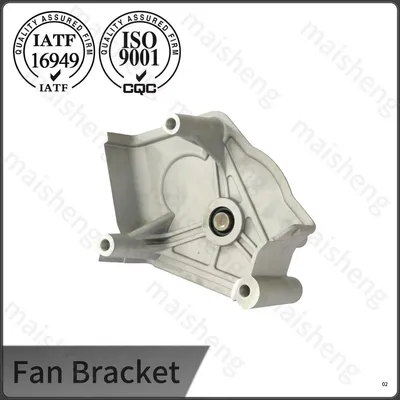

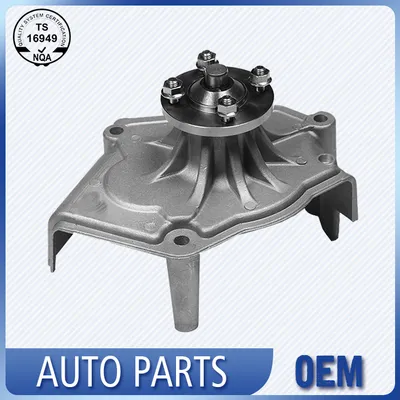

The Commercial Vehicle Engine Cooling Fan Bracket is a core structural component supporting the engine cooling system of commercial vehicles. Professionally manufactured for fleet and engineering vehicle scenarios, this Commercial Vehicle Fan Bracket stabilizes cooling fan operation, solves fan offset and shaking problems caused by long-term driving vibration, and ensures continuous and efficient engine heat dissipation.
Bracket bodies are cast from a high strength ductile iron grade conforming to GJS-500-7, which combines a minimum tensile strength of 500 MPa with an elongation above 7 percent. The spheroidal graphite structure acts as a natural crack arrestor, absorbing the torsional vibrations transmitted from the engine block and fan clutch assembly. Each melt is treated with a magnesium ferrosilicon alloy for nodularization before pouring into resin bonded sand molds, and a spectrometer sample taken from the ladle confirms that carbon, silicon and magnesium levels stay within tight control ranges. Castings undergo a ferritizing annealing cycle at 720 degrees Celsius to reduce hardness variation across the part and improve machinability while keeping elongation high enough to tolerate occasional overload pulses.
Adopting optimized reinforced structure and integrated forming process, our Commercial Vehicle Fan Bracket avoids structural deformation and fatigue damage in long-term use. This Commercial Vehicle Fan Bracket has standard mounting holes and accurate dimensional tolerance, perfectly matching the original installation position to realize seamless replacement.
The machined features include bearing housing bores, pulley mounting faces and dowel pin locations, all finished in a single fixturing on a horizontal machining center. Bore cylindricity is held within 0.015 millimeter, checked by a precision air gauge that records roundness data at three vertical positions along each bore. The bolt hole pattern is verified against a master plate that represents the engine front cover interface, guaranteeing that the fan axis remains within 0.2 millimeter of the crankshaft centerline after installation. Thread depth and pitch diameter are confirmed with go/no go gauges before the bracket moves to the assembly station where the bearing and seal are pressed in under controlled hydraulic pressure.
Adapted to heavy-load, high-temperature and bumpy working environments, the Commercial Vehicle Engine Cooling Fan Bracket features excellent structural rigidity and vibration resistance. This Commercial Vehicle Fan Bracket maintains precise assembly accuracy under frequent start-stop and long-distance driving conditions, effectively reducing cooling system failure rates and vehicle downtime loss.
Every Commercial Vehicle Engine Cooling Fan Bracket complies with industry manufacturing standards and undergoes strict dimensional inspection and structural stability testing before delivery. This Commercial Vehicle Fan Bracket focuses on overall durability, meeting the long-term operation needs of light, medium and heavy commercial vehicles for fleet maintenance and batch replacement.
A representative sample from each production lot is mounted on a test rig that replicates a fully assembled cooling module, then subjected to a stepped frequency sweep from 30 Hz to 300 Hz at 2g acceleration. Resonance frequencies are mapped and compared against the design model to confirm that the bracket does not amplify known engine firing orders. Long term endurance runs at 85 degrees Celsius ambient temperature and continuous 4000 rpm fan speed for 600 hours result in bearing play growth under 0.03 millimeter, measured with a dial indicator at the fan hub. Fleet trials across regional delivery trucks have accumulated over 500,000 kilometers of mixed highway and construction site roads with zero bracket replacements, supporting the calculated B10 life exceeding 800,000 kilometers for the load spectrum tested.
The production line sits within an IATF 16949 certified plant that has specialized in automotive iron and aluminum components for more than 25 years. Each batch of ductile iron is tagged with a heat number that ties to the spectrometer report, sand property log, and annealing furnace chart. Machined brackets carry a laser engraved serial code linking to the coordinate measuring machine report, bearing press fit curve and final audit sheet. For OEM fleet customers, this traceability supports complete PPAP level 3 submissions and allows rapid containment in the rare event of a field concern. The in house tool room maintains all casting patterns and fixture sets, enabling repeat order consistency and fast design revisions for new engine programs.
1.What is a commercial vehicle fan bracket?
A: A commercial vehicle fan bracket is a heavy-duty cast support component matched with medium and heavy trucks, passenger coaches, engineering transport vehicles and commercial diesel engines. It is used to install cooling fan, fan clutch, tension pulley and drive pulley, fix the whole cooling fan assembly, maintain rotary concentricity and bear continuous vibration generated by engine high-load operation.
2. What abnormal signals indicate the commercial vehicle fan bracket is damaged?
A: Obvious metal vibration noise at the front of engine when accelerating or climbing; severe fan shaking at high speed; frequent deviation and cracking of drive belt; continuous high water temperature under full-load driving; loose fan assembly with visible swing gap.
