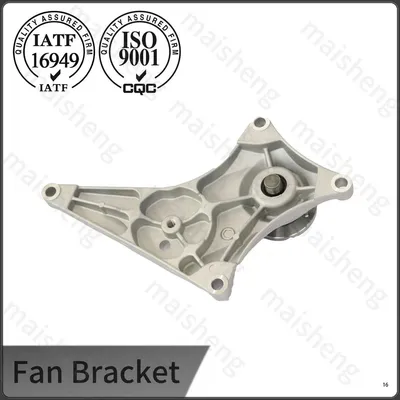

Light Vehicle Engine Cooling Fan Bracket

With a proven track record of over 25 years in light vehicle fan bracket manufacturing, we have built a full production line with deep expertise in mold making, supported by a professional team that offers full-service OEM and ODM customization from custom mold design to finished product manufacturing. Our ISO 9001 certified quality management system ensures every step meets international standards, backed by comprehensive 100% incoming and in-process quality checks to uphold the highest product specifications.

Constructed with durable, lightweight aluminum alloy for optimal performance and longevity, our products are delivered reliably and on time through our efficient logistics system, while our dedicated engineering team provides tailored technical solutions for specific needs. Every Light Vehicle Engine Cooling Fan Bracket is covered by a comprehensive warranty, giving you unmatched peace of mind.

Product Specifications

This Light Vehicle Fan Bracket is a vital structural component in the engine cooling system. It securely holds the cooling fan in its precise position, preventing unwanted movement or misalignment during operation. This ensures the fan operates at maximum efficiency, supporting consistent heat dissipation and helping to maintain stable engine temperatures under everyday driving conditions.

Alloy Characteristics and Heat Treatment

The Light Vehicle Engine Cooling Fan Bracket body is cast from AlSi7Mg0.3 alloy, a material widely used for structural automotive parts due to its balanced silicon content that ensures fluidity and reduced shrinkage during solidification. After gravity casting, the components undergo a T6 heat treatment cycle which includes solution heating at 520 degrees Celsius, water quenching and artificial aging at 160 degrees Celsius for six hours. This procedure produces a fine distribution of Mg2Si precipitates that raise hardness to the 85-95 HBW range and yield a tensile strength above 260 MPa. A spectrographic analysis from each casting batch confirms that the iron content remains below 0.5 percent, preventing the formation of brittle intermetallic phases that could compromise ductility under cyclic thermal loading.

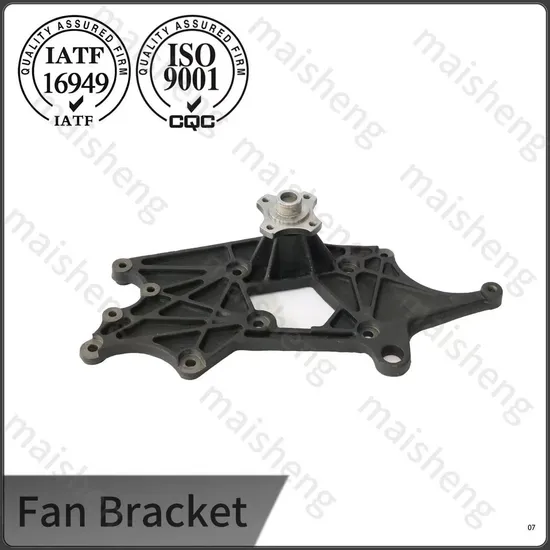

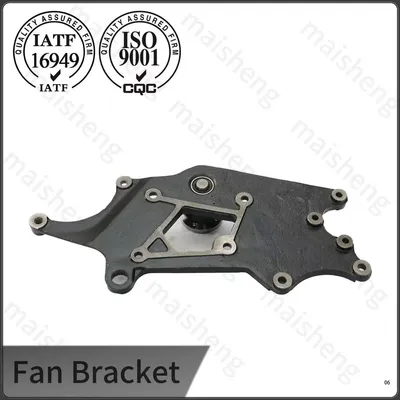

More Light Vehicle Fan Bracket Molds

Machining Precision and Balance Control

After heat treatment and shot blasting, the bracket is located on a four-axis CNC machining center where the bearing bore, mounting faces and dowel holes are completed in one clamping. Bore diameter tolerance is held within H7, while coaxiality between the fan pilot and the engine mounting face is maintained at 0.05 millimeter or better. A dedicated dynamic balance station then measures the assembly with a mandrel simulating the fan and clutch, correcting any unbalance below 2 gram-millimeters by milling material from designated pads. This process limits radial forces transmitted to the water pump bearing, contributing to lower noise and extended bearing life across the engine speed range.

Endurance Testing and Field Data

A production validation bracket is installed on a fully instrumented cooling module and subjected to a stepped temperature cycle from minus 20 to 110 degrees Celsius while the fan runs at 3,000 rpm for 800 hours. Bearing preload loss is monitored every 100 hours and must remain under 0.02 millimeter to pass. In addition, a resonance search test scans the bracket from 20 Hz to 250 Hz to confirm that its natural frequency lies outside the engine's firing frequency band. Real-world data collected from taxi fleets operating in tropical climates shows an average bracket service life exceeding 300,000 kilometers, with no recorded instances of structural cracking or bolt loosening.

Facility Capability and Quality Documentation

Manufacturing takes place within an IATF 16949 certified plant that has produced precision aluminum components for global automotive supply chains for more than two decades. Incoming ingots are verified through optical emission spectrometry, and only material with a certified chemical analysis is released for melting. During machining, statistical process control charts track bore size and flatness, with a Cpk threshold of 1.33 enforced on all critical characteristics. A final inspection report including dimensional layout, hardness and balance measurement is archived with the batch number, providing complete traceability from raw material to finished part. For OEM development projects, level 3 PPAP documentation is compiled as a standard deliverable.

FAQ

1.What are the common materials for light vehicle fan brackets?

A: There are two mainstream materials: cast aluminum and cast iron. Cast aluminum brackets are lightweight, with good heat dissipation and low load, suitable for mainstream passenger cars and light vans. Cast iron brackets feature high rigidity, strong shock resistance and non-deformation, ideal for light trucks and vehicles with frequent high-load operation.

2.Which material fan bracket is more durable for light vehicles?

A: For daily urban light-load vehicles, high-precision cast aluminum brackets are sufficient and more energy-saving. For light vehicles often running with full load, climbing and long-distance driving, cast iron brackets are more durable. They resist long-term vibration fatigue and will not loose or deform, with higher operational stability.

3.What installation practice helps avoid premature bearing wear in an aluminum fan bracket?

A: Before tightening the mounting bolts, align the bracket with the engine front cover dowel pins and ensure the mating surfaces are free of old gasket material or corrosion. Tighten the fasteners in a crossing sequence to the torque value specified by the engine manufacturer, typically 20-25 Nm for M8 bolts. After installing the fan and clutch assembly, rotate the fan by hand to confirm it spins freely without interference. Recheck bolt torque after the first 500 kilometers of driving to compensate for any initial settlement at the contact interfaces.
