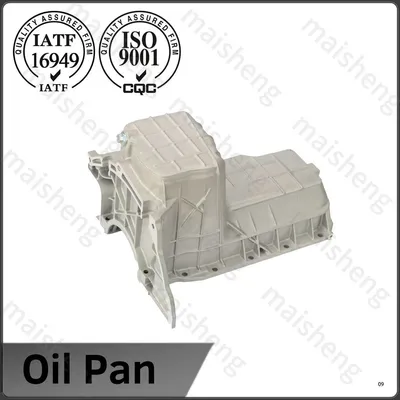

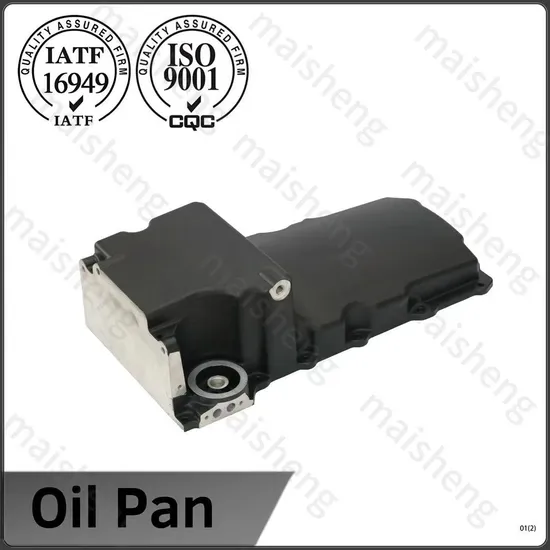

Corrosion Resistant Coated Oil Pan

Maisheng corrosion resistant coated oil pan is developed to tackle premature rust problems encountered by standard oil pans. The protective coating forms a stable barrier against humidity, saline mist and mud splashes during daily operation. It avoids surface oxidation even when vehicles frequently run in coastal regions or wet construction sites. Consistent dimensional accuracy guarantees seamless assembly and stable sealing. Less rust damage lowers unexpected downtime and improves long-term part reliability for fleets, agricultural machinery and industrial power equipment.

Product Specifications

More Steel Auto Bearing

Coating System and Durability Validation

The protective layer is applied as a cathodic electrophoretic coating or a high crosslink density polyester powder coat, both of which form a continuous film that electrically isolates the steel substrate from moisture and dissolved road salts. Prior to coating, the pressed pan body passes through a multi stage alkaline wash and phosphate conversion treatment to promote adhesion and remove drawing lubricants. After curing, the coated surface is tested for thickness using a calibrated eddy current gauge and for adhesion by cross hatch and impact deformation tests. Salt spray endurance is verified on sacrificial coupons taken from the same coating lot, with a requirement of no red rust over 720 hours of continuous neutral salt fog exposure. These measures ensure the oil pan retains its protective integrity even after stone chipping or prolonged submersion in muddy water common to construction and agricultural sites.

OEM and Aftermarket Supply

Corrosion-resistant coated oil pans are available for both OEM and aftermarket applications. Manufacturers can provide customized products based on:

Engine model

Vehicle application

Material selection

Coating specification

Oil capacity

Drain plug configuration

Sensor port requirements

Mounting dimensions

Production Line Capability and Batch Management

The oil pan stamping and coating operations are consolidated within a single 30,000 square meter facility, which also houses dedicated tooling maintenance and quality inspection stations. Progressive dies and transfer presses shape the pan from flat blank to finished form in one continuous sequence, minimizing handling and preserving the flatness of the sealing flange. After forming, parts move to an automated coating line that controls immersion time, voltage and oven temperature with a closed loop feedback system. Each batch carries a unique traceability code that links it to the steel coil certificate, coating bath parameters and final leak test result. This integrated setup supports consistent delivery of corrosion resistant oil pans to fleet operators, equipment builders and aftermarket distributors across North America, Europe and the Middle East.

FAQ

1.Q:What is a corrosion resistant coated oil pan used for?

A:A corrosion resistant coated oil pan is designed with an upgraded protective layer to resist rust, salt mist, mud and humid environments. It solves the common failure of ordinary oil pans that easily oxidize and corrode in harsh working conditions, ensuring stable sealing and longer service life for engine and gearbox systems.

2.Q:Can I get an increased capacity oil pan with corrosion resistant coating?

A: Yes. Maisheng supports customized surface treatment for increased capacity oil pan. All upgraded large-volume oil pans can be equipped with professional corrosion resistant coating, perfectly suitable for coastal areas, engineering sites and long-term outdoor operation scenarios.

3.Q:How do you guarantee consistent coating thickness and adhesion on every batch?

A: Coating thickness is monitored inline with automated gauges and recorded per production hour. Adhesion is verified at the start and end of each shift using cross hatch and impact tests on control panels that travel through the same coating process. The corresponding test records are kept with the batch file and are available for customer review.

4.Q:Can the drain plug position and sensor ports be customized while keeping the corrosion resistant coating?

A: Yes. The design layout, including drain plug thread size and additional sensor bungs, can be modified according to customer specifications before the stamping die is finalized. The same coating system is applied across all custom variants to maintain full coverage on the finished part.
