Aluminum Oil Pan

We select high-grade aluminum materials to make aluminum oil pan that stay robust and maintain steady performance during long-term service. Our professional technical team can design exclusive molds and conduct customized production to meet your unique demands. All manufacturing procedures follow ISO 9001 and IATF 16949 standards, so product quality is fully secured. With over 25 years of experience focusing on auto parts and mold manufacturing, we have built solid industrial expertise.

Optimized production workflows ensure timely delivery for all orders. We provide well-made auto parts at reasonable prices for repair specialists and automotive enthusiasts. Clients are allowed to place trial orders to check product quality before bulk procurement. Our complete set of numerical control processing machines guarantees high precision for every finished part.

Alloy Composition and Thermal Treatment

The oil pan is cast from a primary AlSi7Mg alloy, often designated A356, with a controlled silicon content between 6.5 and 7.5 percent that ensures excellent fluidity during mold filling and reduces hot tearing risk. A small magnesium addition of 0.3 to 0.45 percent allows the material to respond to precipitation hardening. After the casting has cooled, it undergoes a T6 heat treatment: solutionizing at 535 degrees Celsius for six hours, quenching in warm water, and artificial aging at 155 degrees Celsius for five hours. This cycle precipitates fine Mg2Si particles throughout the alpha aluminum matrix, raising the tensile strength above 260 MPa and the Brinell hardness to the 90 to 100 HBW range. A spectrometric analysis of each melt confirms that iron content stays below 0.5 percent, preventing the formation of brittle beta phase platelets that would compromise ductility under cyclic crankcase pressure variations.

Product Specifications

Our aluminum oil pan is precision-engineered with high-grade aluminum alloy for exceptional strength and thermal conductivity. Supported by decades of industry experience and certified quality management systems, it ensures durable, consistent performance tailored to your specific needs.

Machining Accuracy and Leak Path Prevention

The sealing flange is machined on a horizontal CNC station that references the pan's locating dowels to keep the gasket rail flat within 0.1 millimeter across the entire perimeter. A coordinate measuring machine then verifies that every bolt hole center lies within a 0.15 millimeter diameter zone relative to the theoretical cylinder block pattern. After machining, each pan is pressurized with filtered air at 0.5 bar and submerged in a water tank for 30 seconds; any continuous stream of rising bubbles triggers an immediate quarantine and a detailed review of the machining setup and casting integrity for that batch. This immersion test provides objective evidence that the welded or cast joints and the drain plug thread are completely tight. In addition, a random sample from every lot is mounted on a test fixture and filled with hot oil at 120 degrees Celsius for eight hours to verify that the flatness does not degrade under thermal expansion.

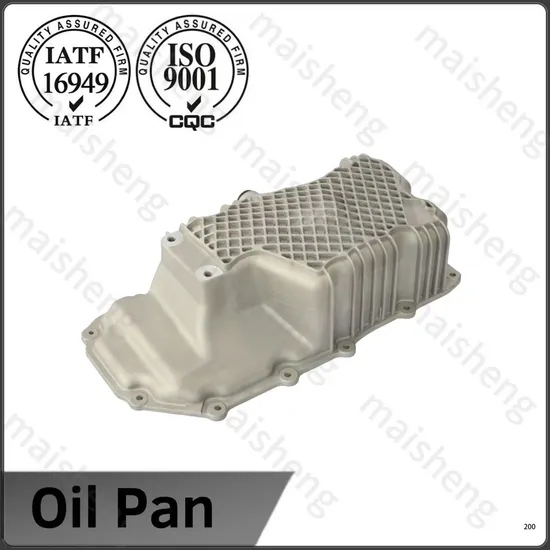

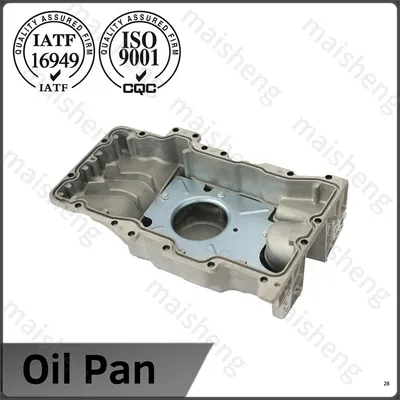

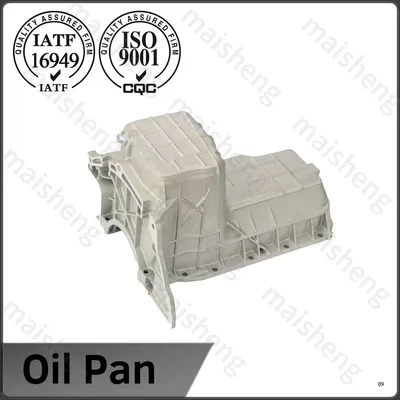

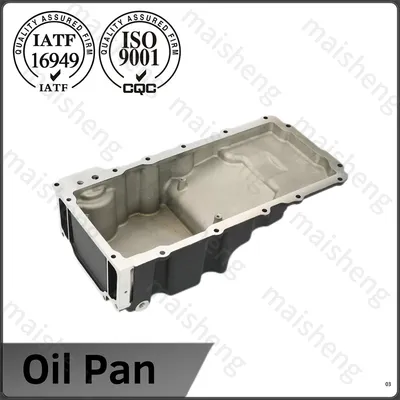

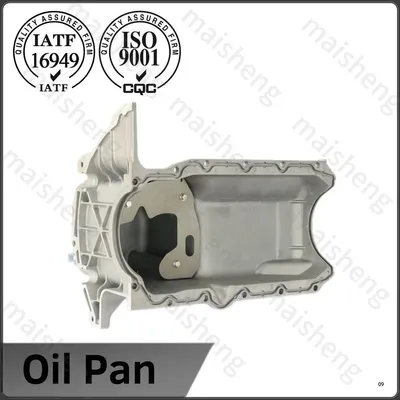

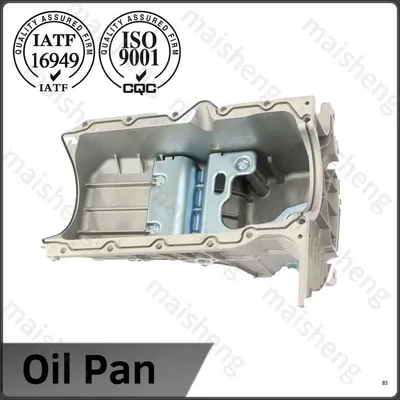

Display: Aluminum Oil Pan

Heat Dissipation and Structural Internal Baffling

The aluminum alloy's thermal conductivity of approximately 150 watts per meter kelvin allows the oil pan to act as an effective heat exchanger, pulling thermal energy from the oil and releasing it to the underbody airflow. Many of our designs incorporate external cooling fins that increase the surface area in contact with moving air, which helps stabilize the oil temperature during extended highway driving or repeated stop and go traffic. Inside the sump, a series of baffle plates are arranged to control oil surge during hard cornering and rapid acceleration. These baffles limit the oil level tilt and maintain a stable reservoir around the pickup tube, which prevents momentary oil starvation even when the vehicle experiences lateral forces above 0.8 g. The baffle and fin geometry can be adjusted during the mold design stage to match the specific oil capacity and packaging constraints of each engine platform.

Manufacturing Traceability and Engineering Support

Production is carried out in an IATF 16949 certified facility that has produced precision aluminum components for over 25 years. Every aluminum oil pan receives a laser engraved lot number that connects to the raw material certificate, the heat treatment log, the CNC machining program revision, and the final dimensional report. This genealogy supports complete PPAP level 3 submissions for OEM engine development. Our application engineers maintain a database of oil pan rail dimensions and gasket groove profiles across numerous passenger car platforms, which allows rapid adaptation of an existing design to a new vehicle model. For custom projects, a prototype pan is delivered with a measurement report and a test fit recommendation within the agreed timeline, enabling customers to validate the part on their engine before committing to series production.

FAQ

1.What is an aluminum oil pan?

A: An aluminum oil pan, also known as an aluminum engine sump, is a core engine bottom component made of cast aluminum or billet aluminum. It is installed at the bottom of the engine crankcase, used for storing engine oil, dissipating lubricating oil heat, and blocking external dust, sediment and splashed water. It is widely used in mainstream passenger cars, modified vehicles and high-performance engines.

2.What are the core features of aluminum oil pans?

A: Aluminum oil pans feature lightweight design, excellent thermal conductivity and rust-proof performance. Most upgraded versions are equipped with cooling fins and internal baffles, which can effectively stabilize oil temperature, suppress oil sloshing, improve lubrication efficiency, and avoid the rust and brittle aging problems of steel and plastic oil pans.

3.Which vehicles and engines are aluminum oil pans suitable for?

A: They are ideal for mainstream gasoline passenger cars, turbocharged engines, daily modified vehicles and light-duty commercial vehicles. Deep-sump aluminum oil pans with enlarged capacity are specially applicable to high-power modified engines and long-distance high-load operating engines to avoid oil starvation.

4.What bolt tightening procedure should be followed to prevent oil leakage?

A: Clean the cylinder block mating surface and the oil pan flange thoroughly, then position a fresh gasket. Hand start every bolt before tightening them in a diagonal sequence across the pan, beginning from the center and moving outward. Tighten in two stages: first to one half of the specified torque, then to the final value, typically 10 to 12 Nm for M6 fasteners in aluminum. After the engine has reached operating temperature and cooled down, recheck the bolt torque once to compensate for any initial gasket compression set. This method distributes the clamping force evenly and avoids localized warping of the sealing rail.
