Replacement Timing Chain Guide

Maisheng’s replacement timing chain guide is developed per mainstream OE installation dimensions to simplify aftermarket repair work. It matches most common vehicle models well and cuts extra modification work during fitting for mechanics. We support flexible order arrangements ranging from small trial orders for individual repair shops to large bulk shipments for regional distributors. Every product passes simulated assembly testing before shipment to ensure seamless cooperation with existing timing chain sets and reduce post-installation return risks for global buyers.

Product Specifications

Our replacement timing chain guide works cooperatively with matching timing chain to keep stable running of engine timing system, greatly cutting hidden breakdown risks during daily vehicle use for repair workshops and end car owners.

Material Composition and Wear Resistance

The guide base is precision stamped from high strength steel, then joined with a molded wear face using a fiber reinforced polymer compound that exhibits a low coefficient of friction against case hardened chain links. This polymer layer is formulated with heat stabilized additives that maintain dimensional integrity during sustained exposure to hot engine oil at temperatures above 130 degrees Celsius. Micro grooves on the contact surface channel oil along the chain path, which helps maintain a lubricating film even during cold starts when oil pressure is still building. A rigid steel spine limits flex under tensioner load, keeping the chain trajectory stable and preventing lateral whip that could accelerate sprocket and guide wear.

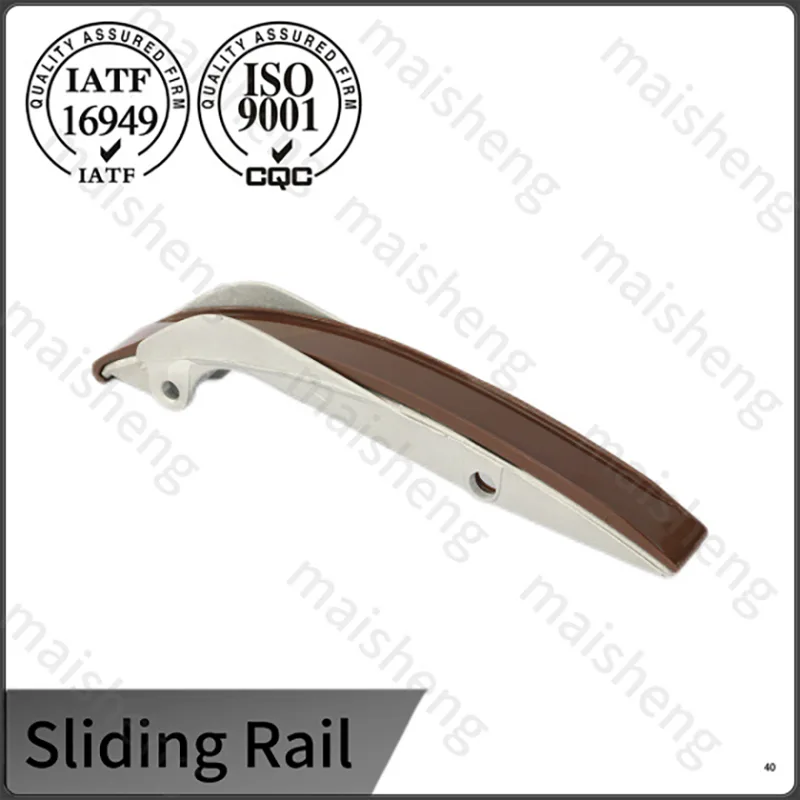

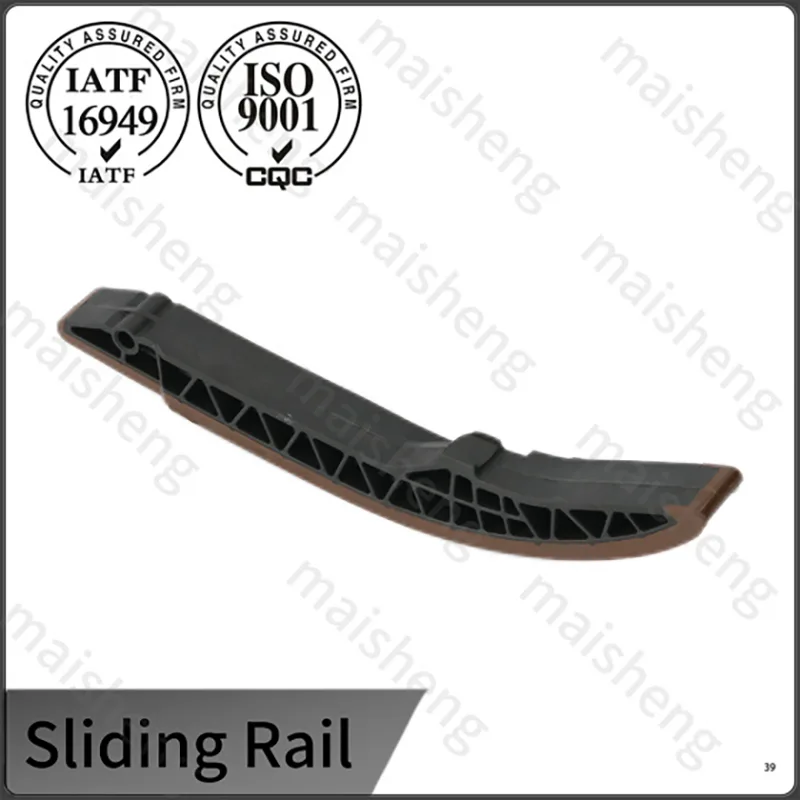

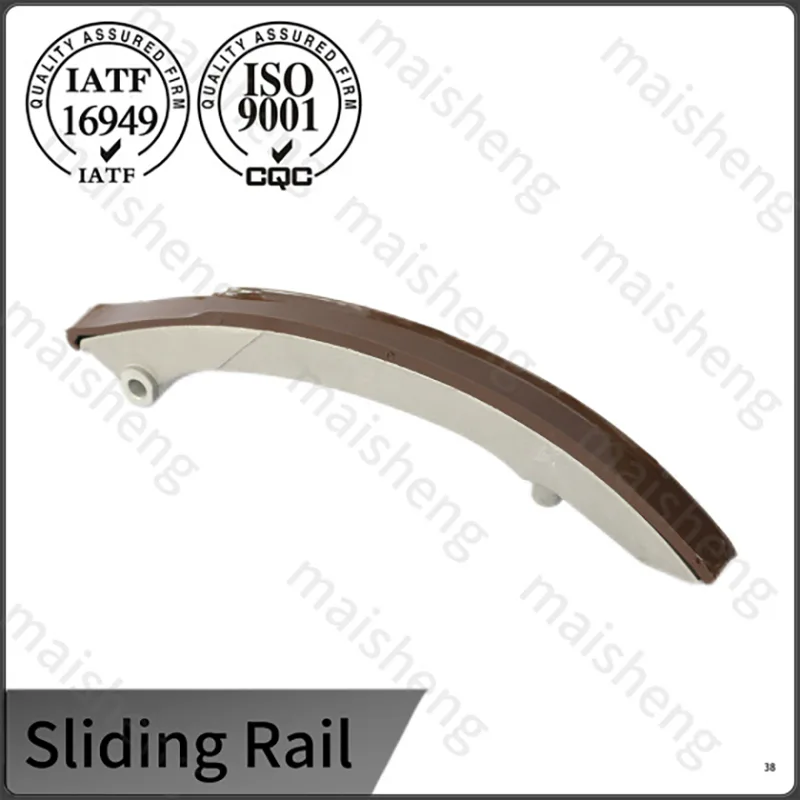

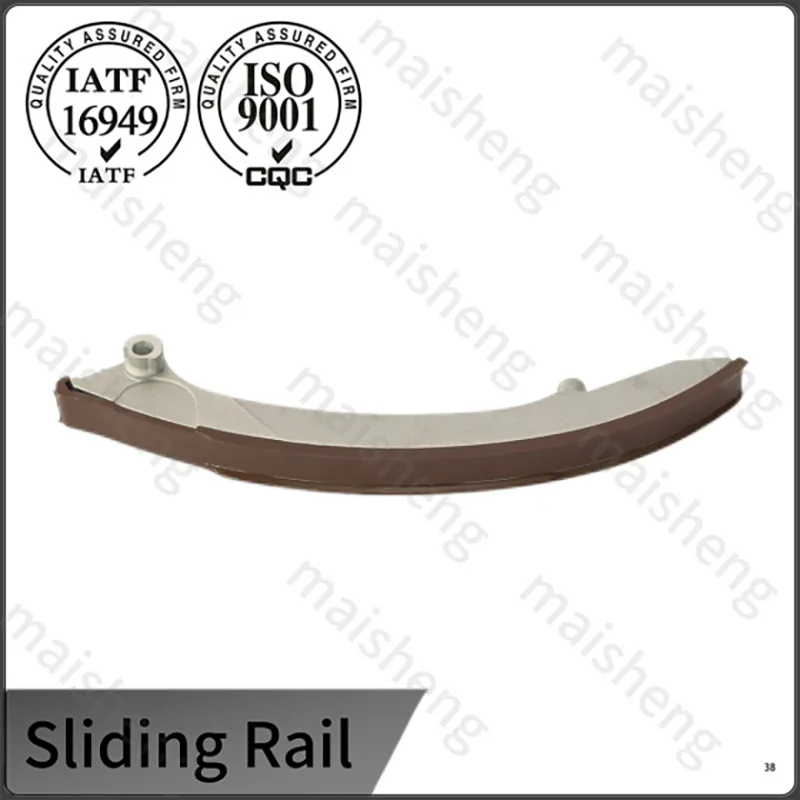

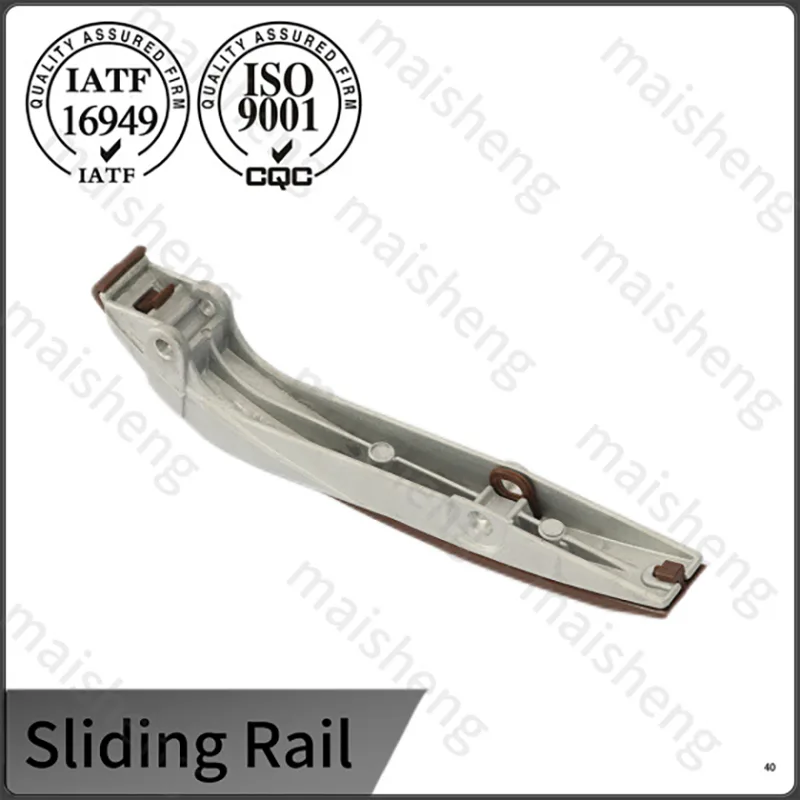

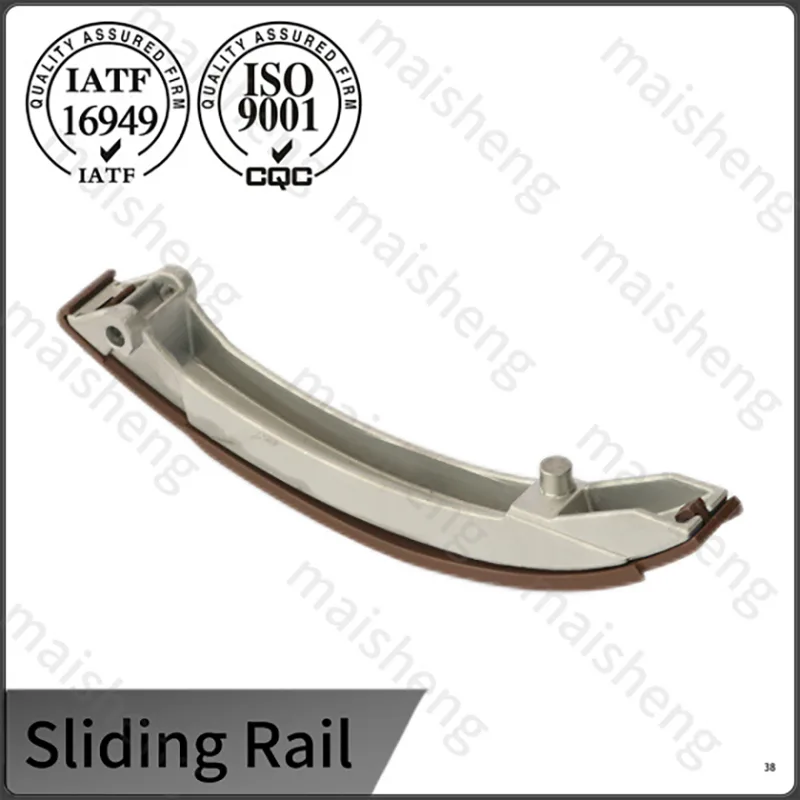

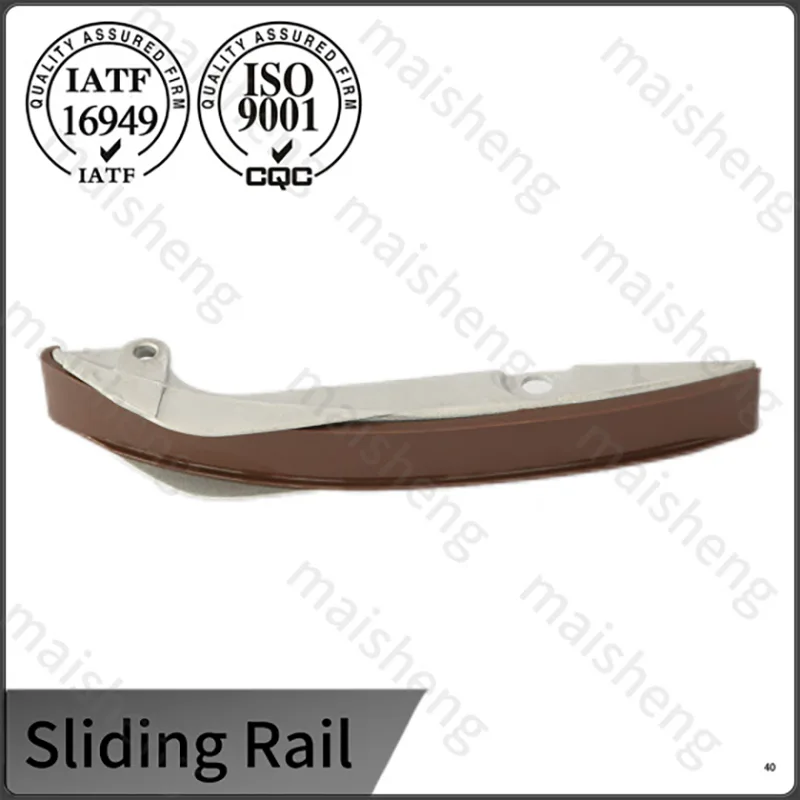

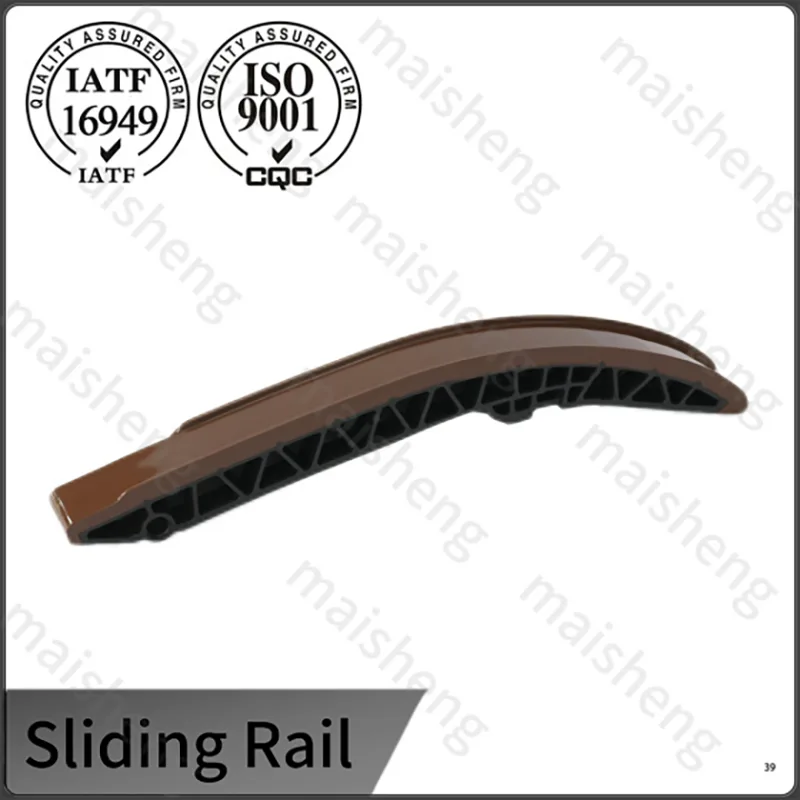

Product Display of Replacement Timing Chain Guide

Assembly Verification and Traceability

A functional fitment jig that replicates the engine timing case geometry is used for each production lot to check mounting bolt alignment and chain path clearance. The molded wear face thickness is sampled with a dial indicator at multiple points and recorded alongside the steel component's dimensional report. Finished guides are laser marked with a batch code that links to the raw material certificate and molding process parameters, enabling full traceability from polymer batch to final inspection. The Ningbo production site, which has been delivering engine timing components since 1999, operates under IATF 16949 and ISO 9001 certified systems and retains inspection records for a minimum of ten years. This structure gives distributors and repair networks documented confidence that each guide will match the original part without rework.

Application Coverage and Custom Processing

The standard reference line covers timing chain guides for four cylinder and six cylinder passenger car engines commonly found in Asian, European and North American vehicle platforms. For heavy duty diesel or modified performance engines, custom guides with a cast aluminum body and thicker wear pads can be developed from a customer supplied sample or engineering drawing. The engineering team evaluates the chain center distance, tensioner contact angle and mounting boss layout, then provides a pre production prototype for approval. Order quantities can start from a trial batch of a few dozen pieces up to container loads, and packaging adapts to neutral boxes or customer branded labels as required.

FAQ

1.What two mainstream materials are used for timing chain guides, what are their respective advantages?

A:a.Fiber reinforced plastic timing chain guide: Light weight, low friction coefficient with metal chain, effective noise reduction, integrated injection molding with low production cost, widely used in mainstream passenger car gasoline engines under medium load;

b.Cast aluminum alloy timing chain guide: Ultra-high structural rigidity, strong high temperature deformation resistance, not easy to soften under long-term 100℃+ engine oil temperature, dedicated to heavy-duty turbo diesel engines and high-load modified power systems.

2.What are the main root causes of rapid abrasion and breakage of timing chain guides?

A: Timing chain tensioner failure leads to excessive chain impact force on the guide surface; long-term use of inferior non-standard viscosity engine oil causes insufficient lubrication dry friction; timing chamber carbon accumulation and metal debris grind the wear lining continuously; frequent high RPM violent driving accelerates material fatigue aging; mismatched oversized timing chain rubs the guide edge continuously.
